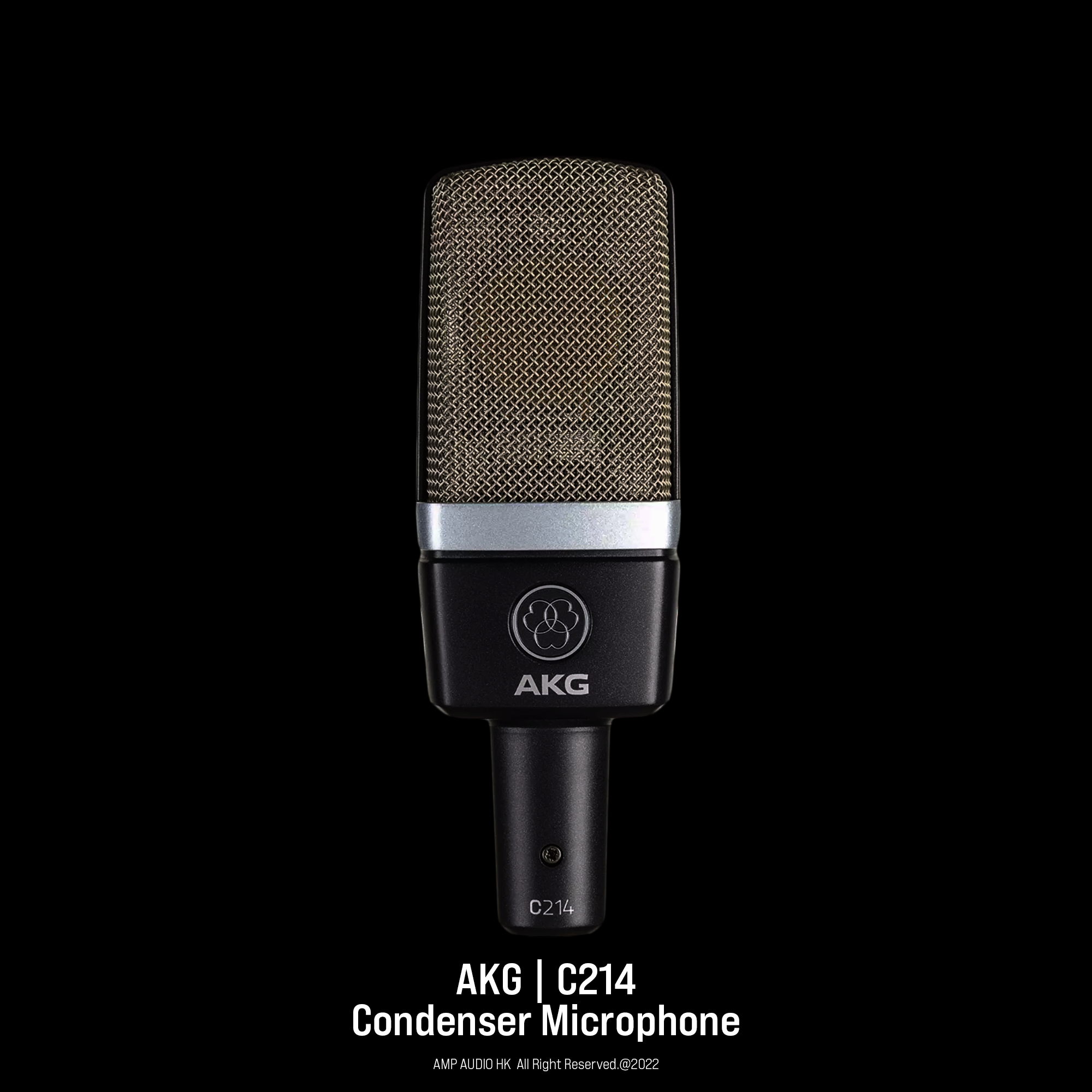

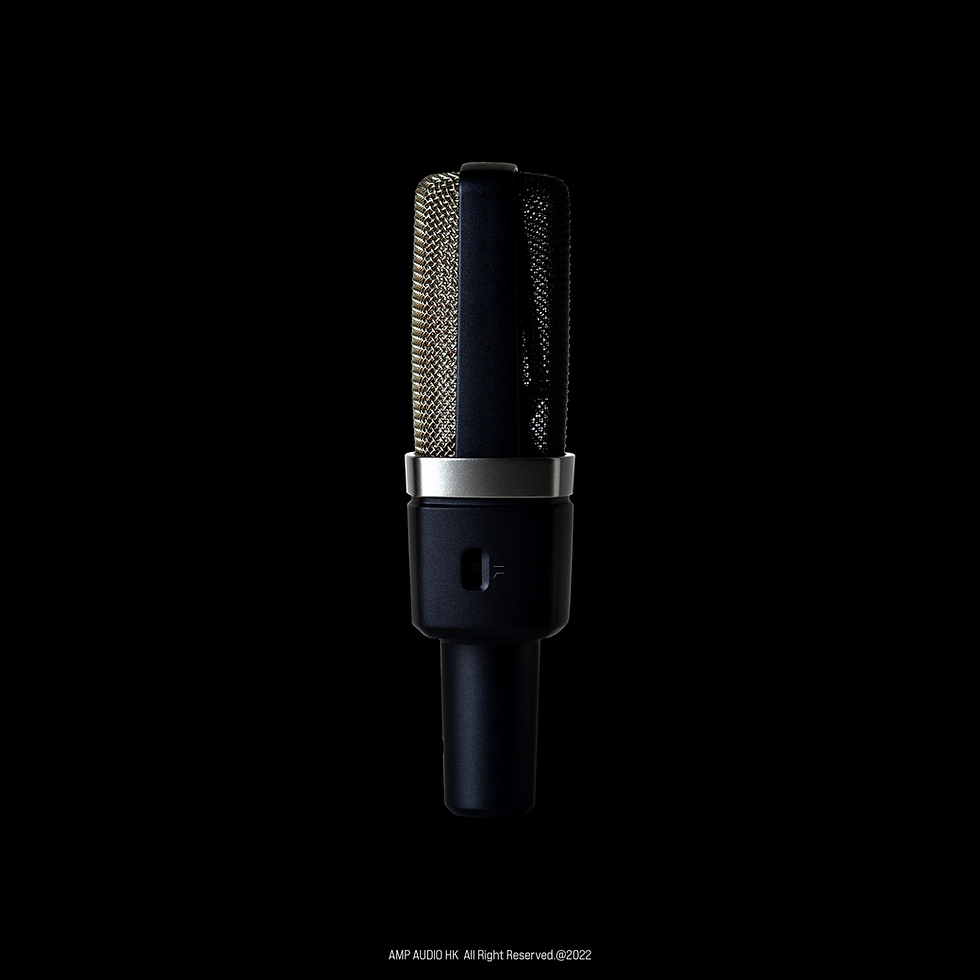

AKG | Large Diaphragm Condenser Microphone | C214
Transformerless Circuit | FET
�����f | �{�f�o��
������������O��
Engineered excellence
The C214 professional large-diaphragm condenser microphone has been designed as a cost-effective alternative to the high-end C414 family. Like the C414, the C214 offers a supreme one-inch capsule on an integrated suspension to reduce mechanical noise. A switchable 20dB attenuation pad allows recording of loud sources of up to 156dB SPL. A switchable bass-cut filter allows close-up recording with almost no proximity effect. The C214 captures sound by combining one capsule of the legendary C414 dual-capsule system and the patented AKG Back-Plate Technology, resulting in an outstanding performance close to the famous C414 XLII.
AKG | C214
POLAR PATTERN Cardioid AUDIO FREQUENCY BANDWIDTH 20 - 20000 Hz Equivalent Noise Level 13 dB-A Sensitivity 20 mV/Pa Signal to Noise 81 dB-A PREATTENUATION PAD -20 dB BASS CUT FILTER 160 Hz ELECTRICAL IMPEDANCE 200 Ohms Recommended Load Impedance 1000 Ohms Dimensions Width 56 mm Height 160 mm Net Weight 280 g Design Finish matte grayish blue Audio Output Type Balanced XLR Gender Male Contacts 3-pin POWERING INTERFACE Voltage 9 to 52 V Current 2 mA Application PRO STUDIO Yes INSTRUMENT VOCALS Yes PIANO / STRINGS Yes HORNS / WOODWINDS Yes DRUMS / PERCUSSION Yes
