/New Experience in Sound and Quality
RME’s reference AD/DA converter is a host of devices all put together into one unit, with a simple and mostly automated way of using it right out of the box. A unit with the industry’s biggest footprint per feature ratio, excellent tech specs, crystal clear and transparent sound signature, and two extremely powerful headphone outputs. The new ADI-2 Pro FS R Black Edition features the AK4493 chip, slightly improved specs and comes with the new extended Multi-Remote Control (MRC)

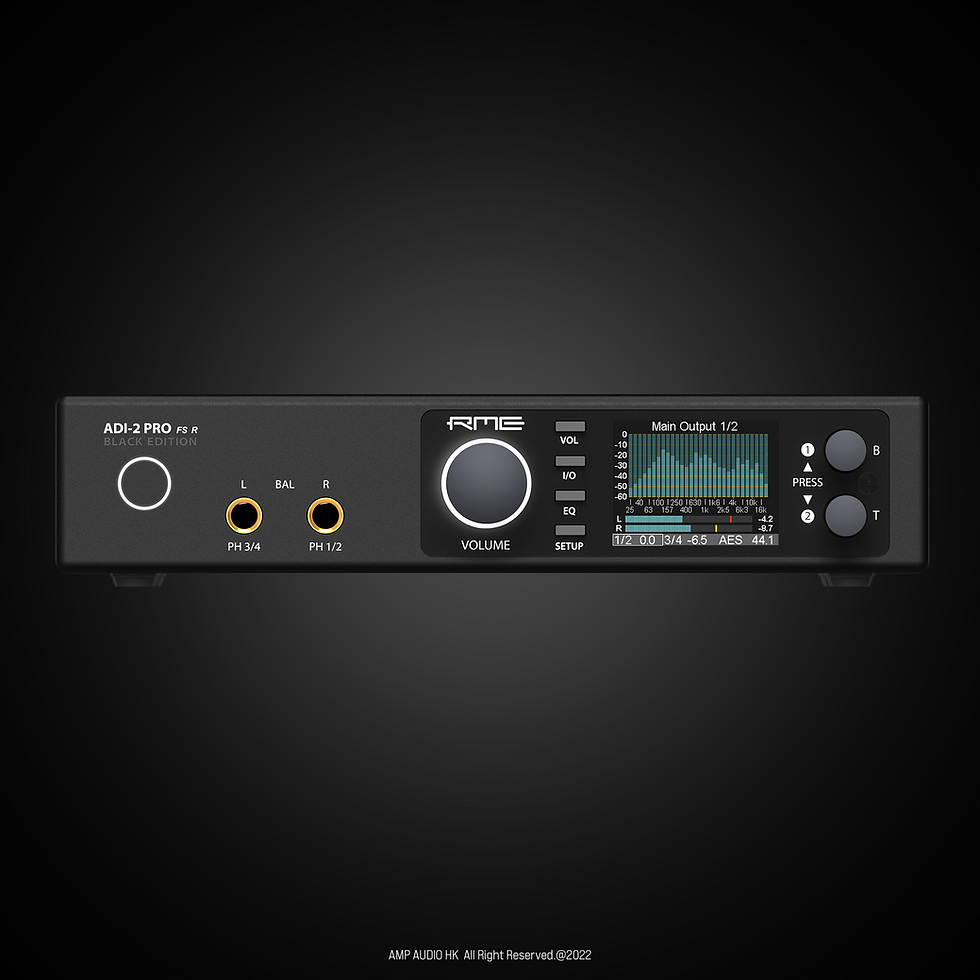

RME | ADI-2 Pro FS R Black Edition
Analog Inputs
XLR
Input: XLR, servo-balanced
Input impedance balanced: 18 kOhm, unbalanced: 9 kOhm
Input sensitivity switchable +24 dBu, +19 dBu, +13 dBu, +4 dBu @ 0 dBFS
Digital Trim Gain range: 0 dB up to +6 dB
Signal to Noise ratio (SNR) @ +13/19/24 dBu: 120 dB RMS unweighted, 124 dBA
Signal to Noise ratio (SNR) @ +4 dBu: 119 dB RMS unweighted, 123 dBA
Frequency response @ 44.1 kHz, -0.1 dB: 5 Hz – 20.5 kHz
Frequency response @ 96 kHz, -0.5 dB: 3 Hz – 45.5 kHz
Frequency response @ 192 kHz, -1 dB: 2 Hz – 92.7 kHz
Frequency response @ 384 kHz, -1 dB: < 1 Hz – 124 kHz
Frequency response @ 768 kHz, -3 dB: < 1 Hz – 180 kHz
THD @ -1 dBFS: -116 dB, 0.00016 %
THD @ -10 dBFS: -125 dB, 0.000056 %
Channel separation: > 110 dB
TRS As input XLR, but:
Input: 6.3 mm TRS jack, servo-balanced, fully compatible to TS and RCA
Analog Outputs
1/2 XLR
Output level switchable +24 dBu, +19 dBu, +13 dBu, +4 dBu @ 0 dBFS
Signal to Noise ratio (SNR) @ +13/19/24 dBu: 120 dB RMS unweighted, 124 dBA
Signal to Noise ratio (SNR) @ +4 dBu: 117 dB RMS unweighted, 120 dBA
Frequency response @ 44.1 kHz, -0.1 dB: 0 Hz – 20.2 kHz
Frequency response @ 96 kHz, -0.5 dB: 0 Hz – 44.9 kHz
Frequency response @ 192 kHz, -1 dB: 0 Hz – 88 kHz
Frequency response @ 384 kHz, -1 dB: 0 Hz – 115 kHz
Frequency response @ 768 kHz, -3 dB: 0 Hz – 109 kHz
THD @ 0 dBFS: < -120 dB, 0.0001 %
THD+N @ 0 dBFS: -115 dB, 0.00018 %
Channel separation: > 110 dB
Output impedance: 200 Ohm
1/2 TRS (rear) As output XLR, but:
Output: 6.3 mm TRS jack, impedance balanced
Maximum output level: +19 dBu
Signal to Noise ratio (SNR) @ +19 dBu: 120 dB RMS unweighted, 123 dBA
Signal to Noise ratio (SNR) @ +13 dBu: 118 dB RMS unweighted, 121 dBA
Signal to Noise ratio (SNR) @ +4 dBu: 115 dB RMS unweighted, 118 dBA
Output impedance: 100 Ohm unbalanced, 200 Ohm balanced
Phones 1/2 As Output 1/2 TS, but:
Output: 6.3 mm TRS jack, unbalanced, stereo
Output impedance: 0.1 Ohm
Signal to Noise ratio (SNR) @ +22 dBu: 120 dB RMS unweighted, 123 dBA
Signal to Noise ratio (SNR) @ +7 dBu: 118 dB RMS unweighted, 121 dBA
Output level at 0 dBFS, Ref Level +19 dBu, load 100 Ohm or up: +22 dBu (10 V)
Output level at 0 dBFS, Ref Level +4 dBu, load 8 Ohm or up: +7 dBu (1.73 V)
THD @ +18 dBu, 32 Ohm load, 1.2 Watt: -110 dB, 0.0003 %
THD+N @ + 18 dBu, 32 Ohm load: -107 dB, 0.00045 %
THD @ +14 dBu, 16 Ohm load, 0.94 Watt: -110 dB, 0.0003 %
Max power @ 0.001% THD: 1.5 W per channel
Output Phones 3/4 As Output Phones 1/2, but:
Output levels at 0 dBFS: Hi-Power off +7 dBu, Hi-Power On +22 dBu
Balanced Phones mode As before, but:
Output levels at 0 dBFS: Hi-Power off +13 dBu (3.46 V), Hi-Power On +28 dBu (19.5 V)
Output impedance: 0.2 Ohm
Signal to Noise ratio (SNR) @ +28 dBu: 123 dB RMS unweighted, 126 dBA
Signal to Noise ratio (SNR) @ +13 dBu: 121 dB RMS unweighted, 125 dBA
Output level at 0 dBFS, Hi-Power On, load 150 Ohm or up: +28 dBu (19.5 V)
Output level at 0 dBFS, Hi-Power Off, load 8 Ohm or up: +13 dBu (3.46 V)
Max power @ 0.001% THD: 2.9 W per channel
Digital Inputs
General
Lock Range: 28 kHz – 200 kHz
Jitter suppression: > 50 dB (2.4 kHz)
Accepts Consumer and Professional format
AES/EBU
1 x XLR, transformer-balanced, galvanically isolated, according to AES3-1992
Input sensitivity 1.0 Vpp
SPDIF coaxial
1 x RCA, transformer-balanced, according to IEC 60958
High-sensitivity input stage (< 0.3 Vpp)
AES/EBU compatible (AES3-1992)
SPDIF optical
1 x optical, according to IEC 60958
ADAT compatible
Digital Outputs
AES/EBU
1 x XLR, transformer-balanced, galvanically isolated, according to AES3-1992
Output level 2.7 Vpp
Format Professional according to AES3-1992 Amendment 4
Single Wire mode, sample rate 28 kHz up to 200 kHz
SPDIF coaxial
1 x RCA, according to IEC 60958
Output level 0.75 Vpp
Format Consumer SPDIF according to IEC 60958
Single Wire mode, sample rate 28 kHz up to 200 kHz
SPDIF optical
1 x optical, according to IEC 60958
Format Consumer (SPDIF) according to IEC 60958
Sample rate 28 kHz up to 200 kHz
Digital
Clocks: Internal, AES In, SPDIF In, ADAT In
Jitter suppression of external clocks: > 50 dB (2.4 kHz)
Effective clock jitter influence on AD and DA conversion: near zero
PLL ensures zero dropout, even at more than 100 ns jitter
Additional Digital Bitclock PLL for trouble-free varispeed ADAT operation
Supported sample rates for external clocks: 32 kHz up to 200
Internally supported sample rates: 44.1 kHz up to 768 kHz
General
Included power supply: external switching PSU, 100 - 240 V AC, 2 A, 24 Watts
Standby power consumption: 50 mW
Idle power consumption: 10 Watts, Max. power consumption: 22 Watts
Idle current at 12 V: 850 mA (10 Watts)
Dimensions (WxHxD): 215 x 44 x 130 mm (8.5" x 1.73" x 5.1")
Weight: 1.0 kg ( 2.2 lbs)
Temperature range: +5° up to +50° Celsius (41° F up to 122°F)
Relative humidity: < 75%, non condensing
All specifications are subject to change without notice.
