Get studio quality recordings

Capture your microphones and instruments and start recording audio directly to your computer. Packing two award winning EVO Mic preamps alongside our advanced converter technology, EVO 4 takes your audio seriously. Add to that intelligent mic preamps that set their own levels with Smartgain, easy to navigate controls, and a powerful range of professional must-have features – EVO 4 isn’t just another audio interface, it’s an entirely new way of doing things.

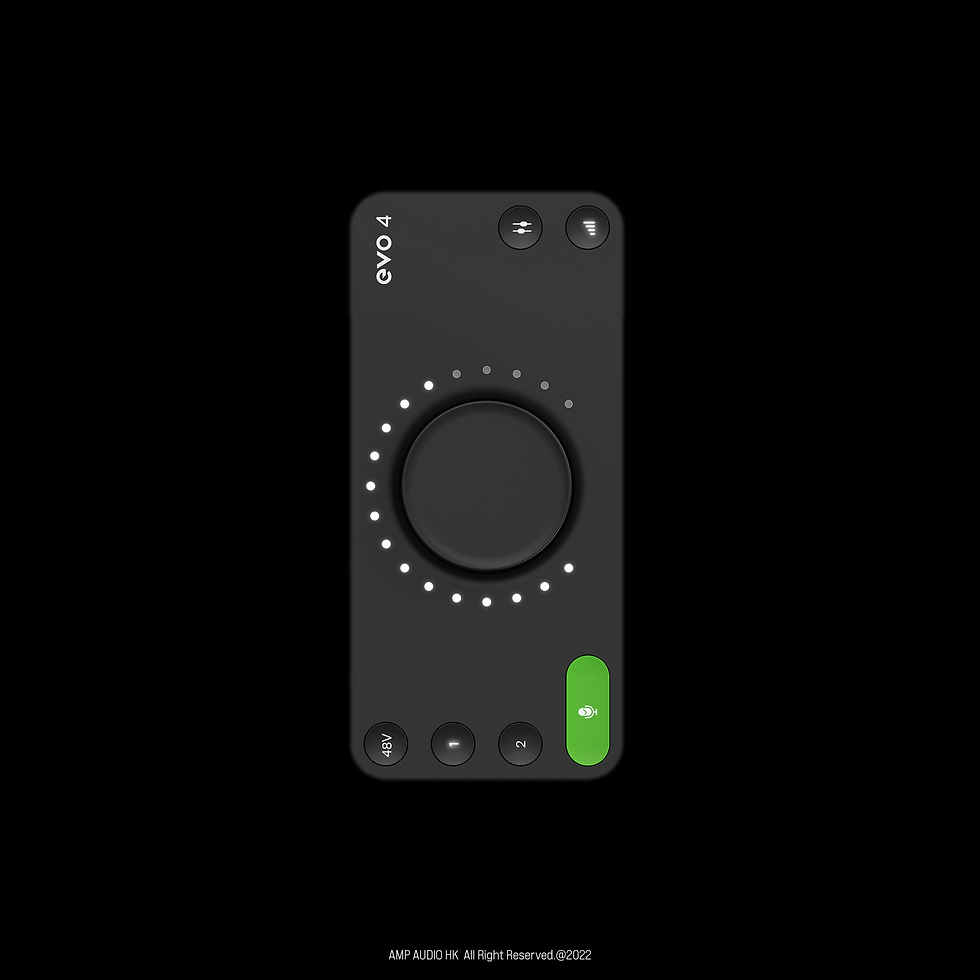

Audient | Evo 4

Name: Audient | Evo 4
Brand: Audient
Price: 1080 HKD
Availability: InStock

HK$1,480.00

HK$1,080.00

Quantity

Microphone Preamplifier

Mic Gain Range:	58dB
Line Gain Range:	58dB (-10dB pad)
Phantom Power:	48v +/-4v @ 10mA/Channel
Mic EIN:	<-128dBu
CMRR:	>85dB @ 1kHz
Maximum Input Level:	+16dBu
Input Impedance (Mic):	>3kΩ Balanced
Input Impedance (Line):	>10kΩ Balanced
Frequency Response:	+/-0.5dB 10Hz to 40kHz
Crosstalk:	<-105dBu @ 1kHz & 10kHz
THD+N @ 0dBu (1kHz):	<0.0015%
SNR:	100dB
XLR:	Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield)
1/4” Jack:	TIP (Hot), RING (Cold) & SLEEVE (Shield)

D.I

D.I Gain Range:	58 dB
Maximum Input Level:	+10dBu
Input Impedance:	1MegΩ Unbalanced
Frequency Response	+/-0.5dB 10Hz to 20kHz
THD+N @ 0dBu (1kHz):	<0.3%
SNR:	100dB
1/4” Jack:	TIP (Hot) & SLEEVE (Shield)

ADC Inputs

Digital Reference Level:	0dBFS = +8dBu
Frequency Response:	+/-0.5dB 10Hz to Fs/2
Crosstalk:	-105dBu @ 1kHz & 10kHz
THD+N @ -1dBFS (1kHz):	<0.001%
Dynamic Range:	113dB A-weighted

DAC Outputs

Maximum Output Level:	+11dBu
Digital Reference Level:	0dBFS = +11dBu
Output Impedance:	<100Ω Balanced
Frequency Response:	+/-0.5dB 10Hz to Fs/2
Crosstalk:	<-110dBu @ 1kHz
THD+N @ -1dBFS (1kHz):	<0.0015%
Dynamic Range:	113dB A-weighted
1/4” Jack:	TIP (Hot), RING (Cold) & SLEEVE (Shield)

Headphone Output

Output Impedance:	<50Ω
Frequency Response:	+/-0.5dB 10Hz to Fs/2
Crosstalk:	-110dBu @ 1kHz
THD+N @ -1dBFS (1kHz):	<0.0015%
Dynamic Range:	113dB A-weighted
Max Level Into 30ohms:	+0.5dBu, 0.0025% THD+N, 1.16Vpk Power: 45mW
Max Level Into 60ohms:	+4.22dBu, 0.0015% THD+N, 1.78Vpk Power: 52mW
Max Level Into 600ohms:	+10.1dBu, 0.0018% THD+N, 3.52Vpk Power: 20mW
1/4” Jack:	TIP (Left), RING (Right) & SLEEVE (Shield)

DSP Mixer Roundtrip Latency:

(in to out)

44.1 kHz	0.594ms
48.0 kHz	0.552ms
88.2 kHz	0.302ms
96.0 kHz	0.281ms

DAW Playback Latency

@ 32 Sample Buffer for Software Instrument Playback

44.1 kHz	~2.5ms
96.0 kHz	~2ms

DAW Roundtrip Software Monitoring Latency

@ 32 Sample Buffer (in to out)

44.1 kHz	5ms
96.0 kHz	4.1ms

Latency – performance may vary as stability at these low buffer sizes is dependant on many factors including CPU load, operating system and performance of other drivers.

USB 2.0 High Speed
