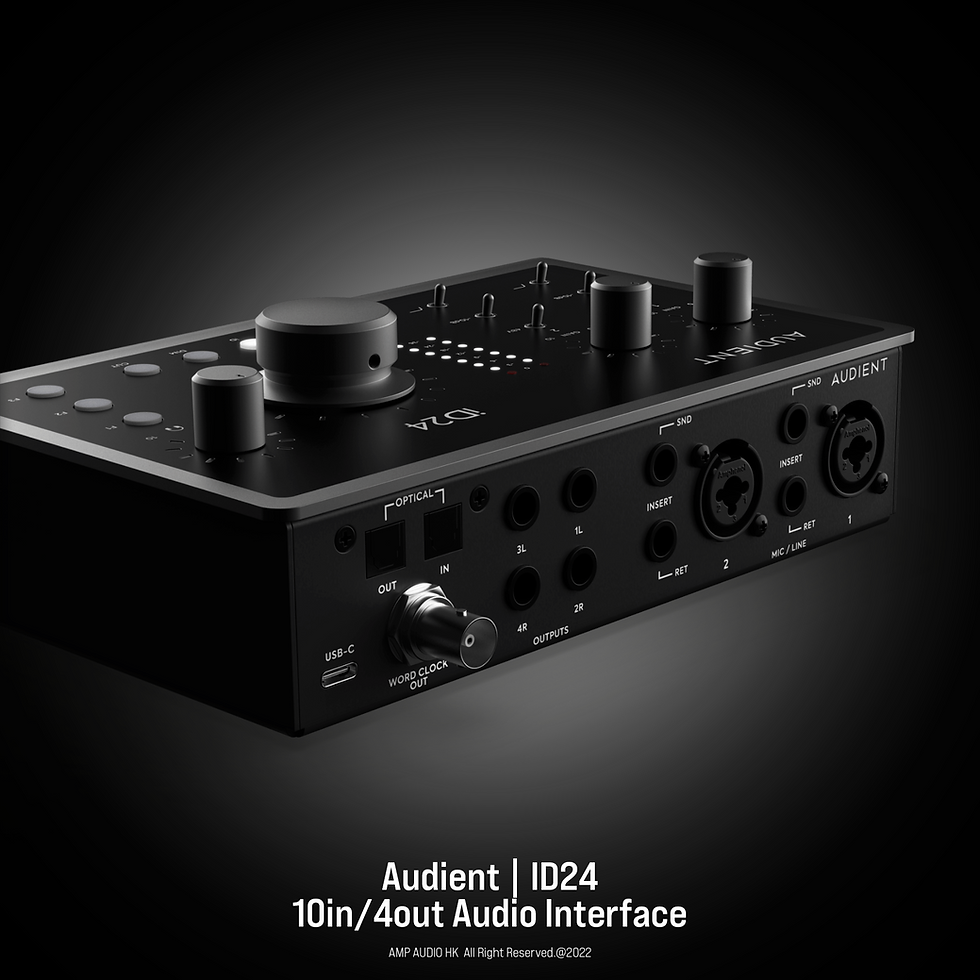

Microphone Preamplifier
MIC GAIN: 0 to +58dB
MAXIMUM INPUT LEVEL: +12dBu
CROSSTALK: <-100dBu @ 1kHz & 10kHz
THD+N: @0dBu 1kHz: 0.0015%, -96dB
MIC EIN: -130dBu A-Weighted
CMRR: >75dB@1kHz
SNR: 97.5dB Unweighted, 100dB A-Weighted
FREQUENCY RESPONSE: +/- 0.5dB 10Hz to 40kHz
INPUT IMPEDANCE (Mic): 3kΩ balanced
INPUT IMPEDANCE (Line): 10kΩ balanced
PAD: -10dB
HPF CUTOFF FREQUENCY: 100Hz
PHANTOM POWER: 48V +/-4V @ 10mA/Channel
XLR COMBI FEMALE: Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield)
1/4” TRS JACK: TIP (Hot), RING (Cold) & SLEEVE (Shield)
Line Inputs
LINE GAIN:-10 to +48dB
MAXIMUM INPUT LEVEL:+22dBu
THD+N @0dBu 1kHz:0.0013%, -97dB
D.I / Instrument Input
D.I GAIN:0 to 58dB
MAXIMUM INPUT LEVEL:+12 dBu
THD+N @ 0dBu (1kHz):0.16%
SNR:95dB unweighted, 97.5dB A-weighted
FREQUENCY RESPONSE:+/- 0.5dB 0.5dB 10Hz to 40kHz
INPUT IMPEDANCE:500kΩ unbalanced
1/4” JACK:TIP (Hot) & SLEEVE (Shield)
Analogue to Digital Converter
MAXIMUM INPUT LEVEL:12.5dBu=0dBFS
CROSSTALK:@1k -135dB, @10k -125dB
FREQUENCY RESPONSE:+/- 0.2dB 0.5dB 10Hz to Fs/2 (Nyquist)
THD+N @ -1dBFS (1kHz):0.0004%, -108dB
DYNAMIC RANGE:122dB A-weighted
INPUT IMPEDANCE:>10kΩ
1/4” JACK:TIP (Hot), RING (Cold) & SLEEVE (Shield)
Digital to Analogue Converter
MAXIMUM OUTPUT LEVEL:12dBu=0dBFS
THD+N @ 1kHz -1dBFS:0.0003%, -110dB
DYNAMIC RANGE:126.5dB A-weighted
CROSSTALK:-130dB @ 1kHz, -115dB @ 10kHz
FREQUENCY RESPONSE:+/- 0.1dB 10Hz to Fs/2 (Nyquist)
OUTPUT IMPEDANCE:<100Ω
1/4” JACK:TIP (Hot), RING (Cold) & SLEEVE (Shield)
Headphone Outputs
MAXIMUM OUTPUT LEVEL:18.5dBu=0dBFS
THD+N @ -1dBFS (1kHz):0.0006%, -104dB
DYNAMIC RANGE:124dB A-weighted
CROSSTALK:-117dB @ 1kHz, -101dB @ 10kHz
FREQUENCY RESPONSE:+/- 0.2dB 10Hz to Fs/2 (Nyquist)
OUTPUT IMPEDANCE:<50Ω unbalanced
MAX LEVEL INTO 30R:2.63V Peak, 1.87V RMS, 232mW
MAX LEVEL INTO 60R:4.28V Peak, 3.03V RMS, 295mW
MAX LEVEL INTO 600R:7.91V Peak, 5.6V RMS, 104mW
USB-C High Speed
NO. OF INPUT CHANNELS:10 (2 Analogue, 8 Digital)
NO. OF OUTPUT CHANNELS:14 (6 Analogue, 8 Digital)
CONNECTOR:USB Type-C
INCLUDED CABLES:1m USB 2.0 Type-C to Type-C
Digital Input
8-CHANNEL ADAT:44.1kHz to 48kHz
4-CHANNEL ADAT:88.2kHz to 96kHz (SMUX)
STEREO S/PDIF44.1kHz to 96kHz (Stereo)
Digital Output
8-CHANNEL ADAT:44.1kHz to 48kHz
4-CHANNEL ADAT:88.2kHz to 96kHz (SMUX)
STEREO S/PDIF44.1kHz to 96kHz (Stereo)
DSP Mixer Latency
Round Trip (in-to-out)
44.1kHz:0.344ms
48kHz:0.312ms
88.2kHz:0.188ms
96kHz:0.177ms
Word Clock Output
WORD CLOCK OUTPUT:44.1kHz to 96kHz
