A Classic Tube Microphone for the 21st Century

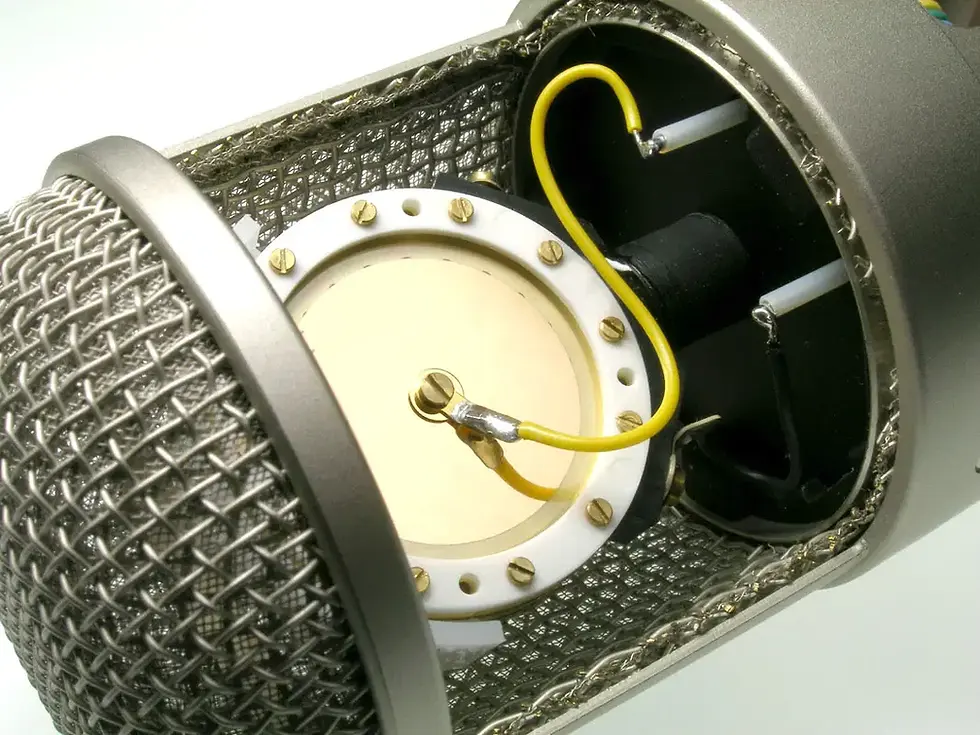

The M 147 Tube brings back the classic sound of Neumann’s famous tube microphones of the 1950s. The M 147 tube is a cardioid microphone using the same large diaphragm capsule as the legendary U 47 but combines it with an innovative tube circuit for lowest noise. Its transformerless output stage ensures superb performance at an attractive price.
Neumann | M 147 TUBE UK
Acoustical operating principle Pressure gradient transducer Directional Pattern Cardioid Frequency Range 20 Hz ... 20 kHz Sensitivity at 1 kHz into 1 kohm 20 mV/Pa Rated Impedance 50 ohms Rated load impedance 1 kohms Equivalent noise level, CCIR¹⁾ 24 dB Equivalent noise level, A-weighted¹⁾ 12 dB-A Typical SPL (tube characteristic) for K<0.5% 3²⁾ 114 dB Typical SPL (tube characteristic) for K<5% 4²⁾ 134 dB Signal-to-noise ratio, CCIR (re. 94 dB SPL)¹⁾ 70 dB Signal-to-noise ratio, A-weighted (re. 94 dB SPL)¹⁾ 82 dB Maximum output voltage 8 dBu Dynamic range of the amplifier, DIN/IEC 651, for THD < 0.5%²⁾ 102 dB Dynamic range of the amplifier, DIN/IEC 651, for THD < 5%²⁾ 122 dB Power supply N 149 A Matching connector Microphone: DIN 8 F, Power Supply: XLR 3 F Weight 460 g Diameter 57 mm Length 142 mm
