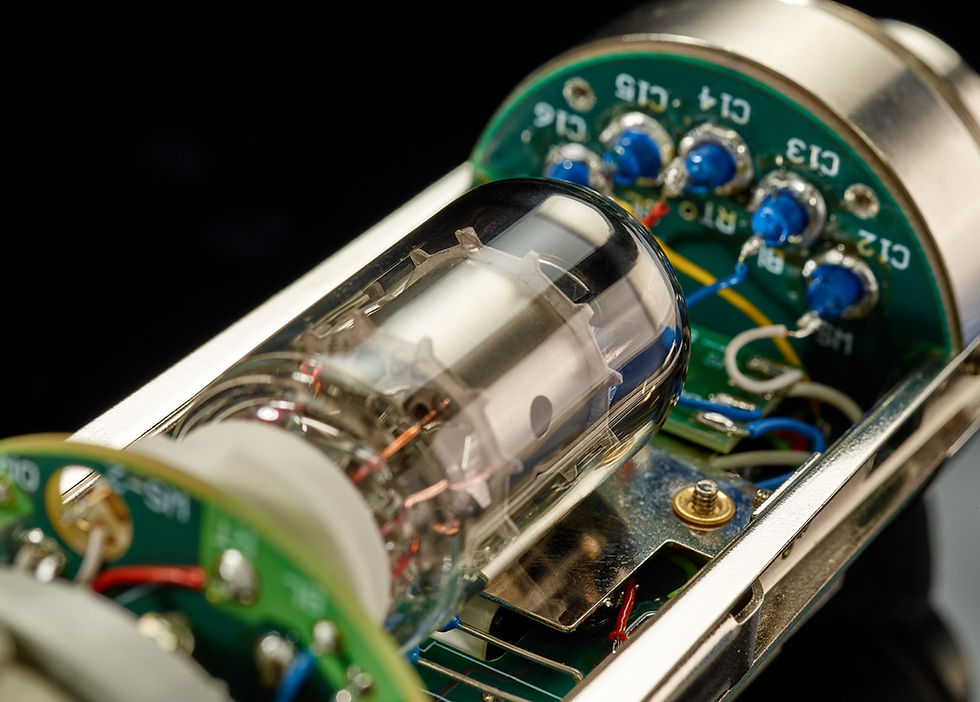

Transformer Circuit | Tube

TLM102 | TLM103 | TLM107 | TLM170R | TLM193 | TLM49 SET | TLM67 | U87AI | U87 AI Studio Set | U89i | USM 69i | U47 FET | U67 Set | M147 Tube | M149 Tube | M150 Tube | KMS104 | KMS105 | KM183 | KM184 | KM185 | KU100 | BCM104 | BCM705 | MA-1

香港行貨 | 現貨發售接收任何形式消費券

The Original – Often Imitated, Never Duplicated

Introduced in 1960, the U 67 was the quintessential studio workhorse throughout the formative years of modern music. Today, more than ever, its inimitably smooth sound continues to be in high demand. Now, for the first time in decades, Neumann’s legendary tube microphone is back in production, built to the original specifications.

Neumann | U 67 SET

Name: Neumann | U 67 SET
Brand: Neumann
Price: 57800 HKD
Availability: OutOfStock

HK$57,800.00

Quantity

Contact Us to Purchase

Acoustical operating principle	Pressure gradient transducer
Directional Pattern	Omnidirectional, cardioid, figure-8
Frequency Range	20 Hz ... 20 kHz
Sensitivity at 1 kHz into 1 kohm	15/24/16 mV/Pa ± 1 dB (Omni/cardioid/8)
Rated Impedance	200 ohms
Rated load impedance	1 kohms
Equivalent noise level, CCIR¹⁾	32/28/31 dB (Omni/cardioid/8)
Equivalent noise level, A-weighted¹⁾	21/17/20 dB-A (Omni/cardioid/8)
Maximum SPL for THD 0.5%²⁾	114 dB (cardioid)
Maximum SPL for THD 0.5% with preattenuation²⁾	124 dB
Signal-to-noise ratio, CCIR (re. 94 dB SPL)¹⁾	62/66/63 dB (Omni/cardioid/8)
Signal-to-noise ratio, A-weighted (re. 94 dB SPL)¹⁾	73/77/74 dB (Omni/cardioid/8)
Maximum output voltage	-9.8 dBu
Supply voltage (P48, IEC 61938)	48 V ± 4 V
Current consumption (P48, IEC 61938)	3.5 mA
Matching connector	Microphone: spec. 7pin, Power Supply: XLR 3 F
Weight	560 g
Diameter	56 mm
Length	200 mm
